Fittings for Emptying IBC Totes and Other Large Water Storage Containers

ibc totes

I have on several occasions suggested that the 275-gallon IBC totes are a good solution for storing water in a location in which you plan to stay during an emergency.  Several people have asked me how to get the water out of them.

As you may know, the IBC totes have a valve and a spout at the bottom.  The valve is plastic and while it seems to work ok, I wouldn’t trust it for everyday use.  But the spout is threaded with standard 2-inch pipe threads.

I make a simple fitting consisting of a

  • 2″ Female Adapter, Slip x FPT, PVC Schedule 40
  • 2″ x ¾” Reducer Bushing, SP x FPT, PVC Schedule 40
  • One ¾” brass faucet with hose bib
IBC tites

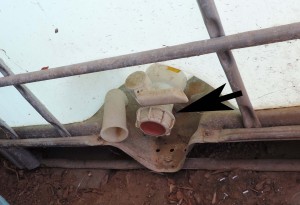

The arrow points to the cover over the end of the spout you need to remove to install the new fittings

You will also need some PVC schedule 40-pipe glue and a roll of Teflon tape.  Glue the reducing bushing into the female adaptor with PVC clue.  Screw the faucet into the reducing bushing using the Teflon tape.  When this is ready screw the whole fitting onto the spout on the IBC tote.

This gives you two valves at the bottom, the built in plastic one and the faucet.  If the plastic one fails, you still have the faucet.  With the faucet you can control the water flow and connect a garden hose if needed.  I always keep a water hose that is approved for domestic water.  You can get them at a good RV supplier.  This style of fitting can be used on any large water tank that has threaded fittings at or near the bottom

If you have any questions about the size of the threads, take the ring that holds the cover on the spout to the plumbing supply with you.

IBC totes

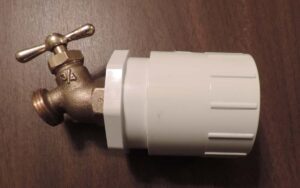

The finished fitting

IBC totes

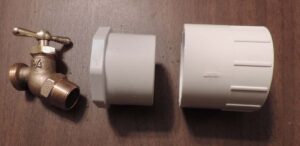

The required fittings



While the IBC totes are heavy weighting around 2300 hundred pounds when full, they have a small footprint on the ground.  They only require a space approximately 48 x 40 inches in size and they can be stacked up to three high.  They are 46 inch high, so you can double stack them in many garages.

If you buy them used, just make sure you know what has been stored in them.

Howard

This entry was posted in water purification and tagged , . Bookmark the permalink.

6 Responses to Fittings for Emptying IBC Totes and Other Large Water Storage Containers

  1. Joe Friday says:

    I have several of these and have the exact setup that you described. Another reason why I like this site. Common sense answers. Thanks!!

  2. Terry says:

    How can I thank you enough for your help? You have solved a huge hurdle for me!!

  3. gary says:

    I am looking for Tote to garden hose connections from 3 types of outlets. It appears there are at least three types of threads. I am Not sure what the names of the thread types are but they seem to be standard, coarse, and metric as it appears. I have found connections for the standard but I have not found connections for the course in the metric that convert the outlet from that size to a standard garden hose size connection that I need for my used totes that I sell to my customers.
    I want to have those connections on hand in case a customer wants to buy them from me instead of spending a lot of time like I have on finding a connection that is inexpensive and quick to retrofit.

    Can you help me directly or can you refer me to someone who sells these particular types of connections?

    I have used the banjo connection on some units to get the thread size so that I can use what I have however that becomes expensive just to make a connection to some of those outlets. Some outlets will not accept a banjo type of connection.

    I have the connection that makes the transition from the 2 inch what I call standard thread to the garden hose connection. I found the standard thread as I call it 2 inch connection that converts it to a garden hose on eBay or Amazon at a reasonable price of less than $10.

    I have also found the brass connections that I can use to go into plastic course deal barrels but that is more expensive than I like to pay. So if you could help in any of these connections I would greatly appreciate it .

  4. Charles says:

    Where do you find the BSP adapter for the totes’ valve the threads are NOT standard 2 inch NPT. The cap on these tote valves say 2-1/8 BSP! At a loss.
